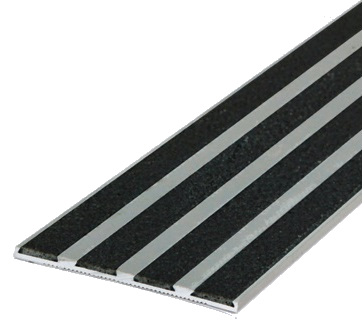

FN510 Premium Recess Bar


Anti Slip Recess Bar

FN510 Premium Recess Bar has solid epoxy based carborundum inserts. It is architecturally designed to rebate into the steps. It offers comprehensively designed profiles to meet every demand, from heavy duty traffic in railway stations to the more general retail/ office use, providing maximum pedestrian safety and WHS requirements. Anti Slip Recess Bar is manufactured to meet the Australian standards and building codes.

FN510 Premium Recess Bar

Aluminium Profile Colours:

  1. Clear Anodised
  2. Black Anodised
  3. Gold Anodised

Insert Colours:

  1. Yellow
  2. Black
  3. Grey
  4. Red
  5. Luminescent

Features:

 CODE FN510
BASE MATERIAL Alloy: 6060, Temper: T5
FINISH Clear Anodised – 25Um Black Anodised – 40Um
TREAD WIDTH 54mm
TREAD THICKNESS 2.6mm
INSERT TYPE Solid Epoxy Based Carborundum – Heavy Duty, External Grade
PRODUCT WARRANTY 2 Years
INSERT SLIP RATING P5 Classification (Highest available)
CODE COMPLIANCE AS1428.4.1-2009 Check floor finish colour for luminance contrast requirements
FIXING METHOD Fix with adhesive
