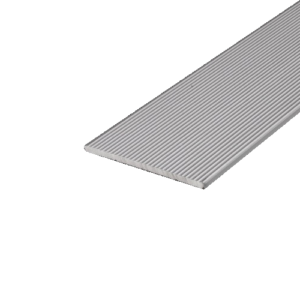

Aluminium Recess Bar
FN210 Aluminium Recess Bar is architecturally designed to rebate into the steps. It offers comprehensively designed profiles to meet every demand, from heavy duty traffic in railway stations to the more general retail/ office use, providing maximum pedestrian safety and WHS requirements. This Stair Tread Recess Bar is manufactured to meet the Australian standards and building codes.
Specification
| PRODUCT | Recess Bar |
| CODE | FN210 |
| BASE MATERIAL | Alloy: 6060, Temper: T5 |
| FINISH | Clear Anodised – 15Um |
| TREAD WIDTH | 54mm |
| TREAD THICKNESS | 2.6mm |
| PRODUCT WARRANTY | 2 Years |
| CODE COMPLIANCE | AS1428.4.1-2009 Check floor finish colour for luminance contrast requirements |
| FIXING METHOD | Fix with adhesive |
| ALUMINIUM COLOURS | Silver, Black or Gold – Anodised |
